      SC7CT27180


      HIGH PERFORMANCE ANALOG OUTPUT MEMS MICROPHONE














      SC7CT27180 is a high-performance, low power dissipation, top-ported, omnidirectional, analog output MEMS microphone with small SMD package. SC7CT27180 integrates acoustic sensor device, low noise input stage and output amplifier. SC7CT27180 features high sensitivity, high SNR and flat&wide frequency response.
      Due to the low power, battery life of portable products is longer.  SC7CT27180 has internal RF suppression circuit and it is available in small package 2.75 x 1.85 x 0.95, compatible with SMT process. The voltage range is 1.5V~3.6V.








      Main feature




      • Wide voltage range : 1.5~3.6V
      • high SNR: 65dBA
      • ultra low power dissipation: <120uA
      • Flat frequency response
      • Stable performance
      • Compatible with SMT process
      • Omnidirectional
      • 10000g high0G anti-surge
      • RF protection and  suppression
      • Package: 2.75 x 1.85 x 0.95








      Ordering Information








											Product Name
											Package form
											Marking
											Hazardous Substance Control
											Packing Type
											Remarks






											SC7CT27180
											2.75 x 1.85 x 0.95
											無
											Halogen free
											Tape & Reel

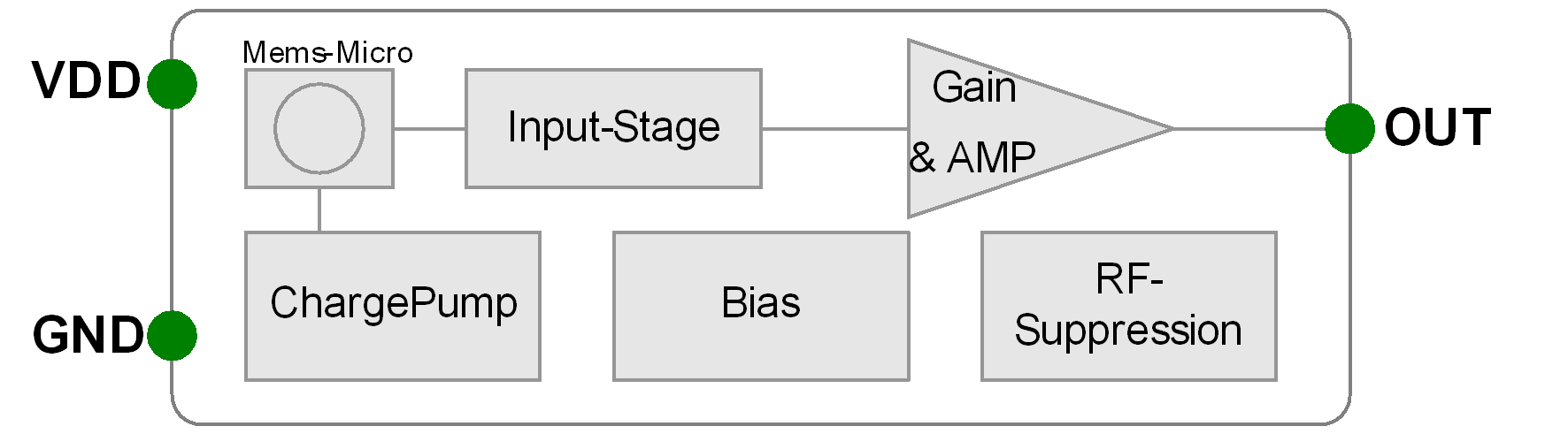

      Block Diagram
