SDM06M60TAS
INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/6A

    SDM06M60TAS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 low-loss IGBTs and 3 half-bridge HVIC for gate driving.

    SDM06M60TAS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.

    SDM06M60TAS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature

  • Built-in low-loss 600V/6A IGBT

  • Built-in high-voltage Gate driver circuit (HVIC)

  • Built-in under-voltage protection

  • Built-in bootstrap diode

  • Built-in Negative Temperature Coefficient (NTC) resistor for temperature sensing

  • Compliant with 3.3V and 5V MCU interface, active high

  • 3 independent negative DC-link terminals for inverter current sensing

  • Optimal adapted for low EMI

  • Insulation class: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM06M60TAS SOP-23H SDM06M60TAS Pb free Tube
SDM06M60TASTR SOP-23H SDM06M60TAS Pb free Tape&Reel

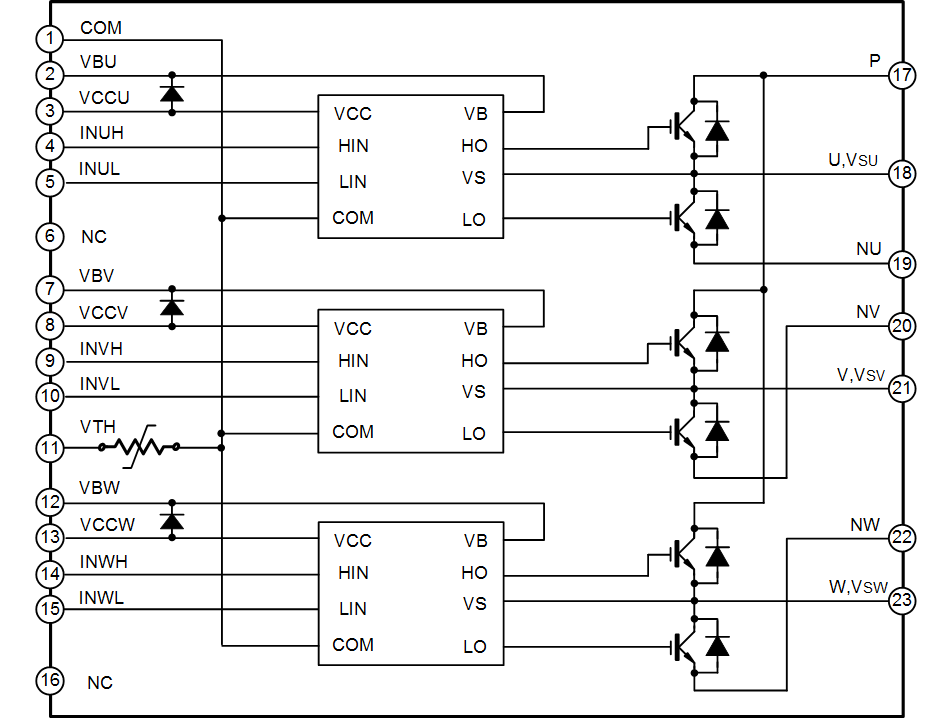

Block Diagram


Packages
