SLP74XS0102
2-BIT AUTO DIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR DUAL SUPPLY AND OPEN DRAIN

The SLP74XS0102 is a directionless voltage-level translator specifically designed for translating logic voltage levels. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)).The A port is designed to track VCC(A). VCC(A) accepts any supply voltage from 1.65V to 5.5V. VCC(A) must be less than or equal to VCC(B). The B port is designed to track VCC(B). VCC(B) accepts any supply voltage from 2.3V to 5.5V. This allows the device suitable for translating between any of the voltage nodes (1.8V, 2.5V, 3.3V and 5.0V).

The SLP74XS0102 is designed so that the OE input circuit is supplied by VCCA. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • No direction-control signal needed

  • Wide supply voltage range:

  • VCC(A): 1.65V to 5.5V and VCC(B): 2.3V to 5.5V (VCC(A)≤VCC(B))

  • Max data rates:

  • Push-pull: 24Mbps

  • Input accept voltages up to 5.5V

  • IOFF circuitry provides partial Power-down mode operation

  • ESD protection:

  • HBM  4kV

  • Latch-up performance 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74XS0102KDTR SOT-23-8L 0102 Halogen free Tape & Reel

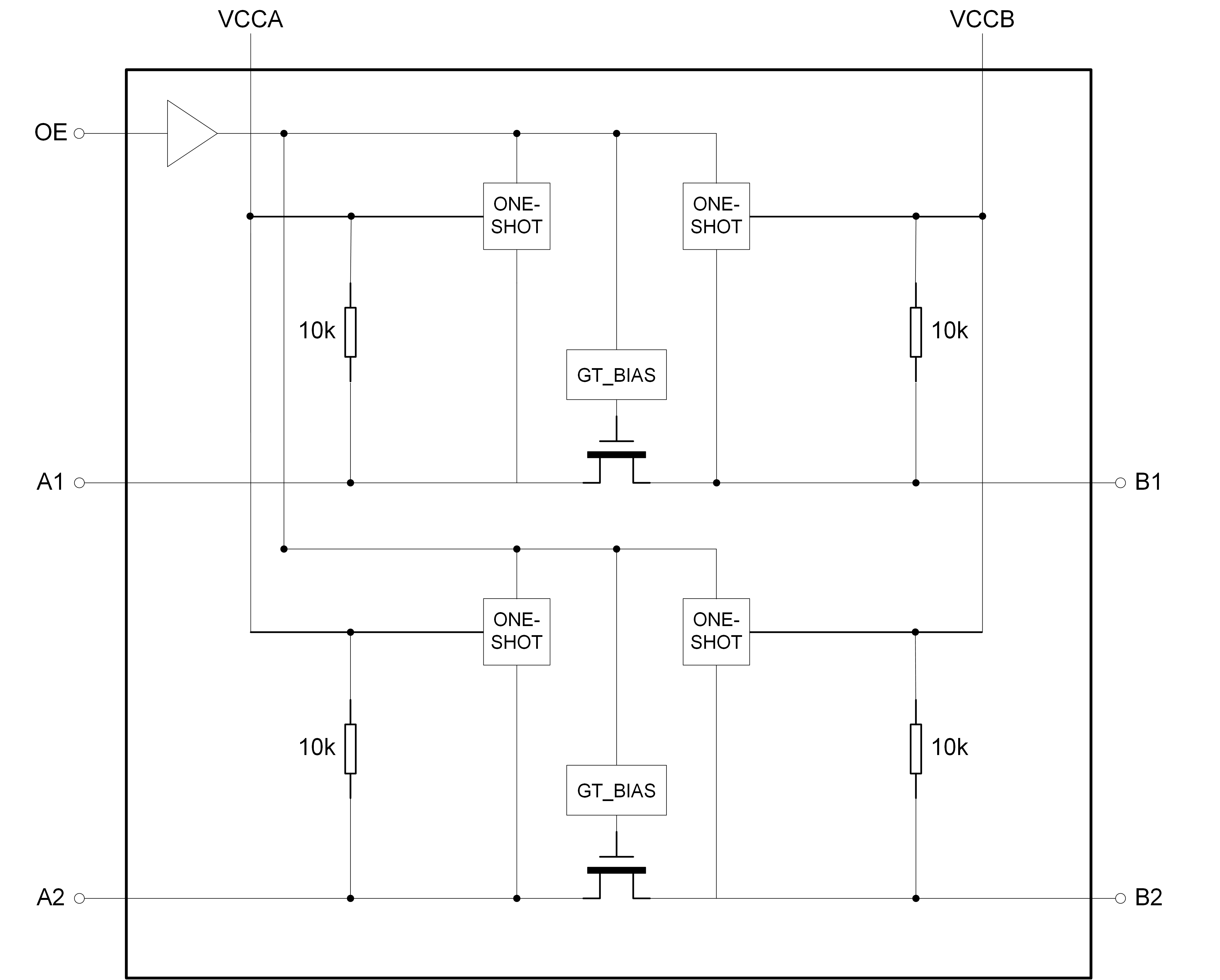

Block Diagram

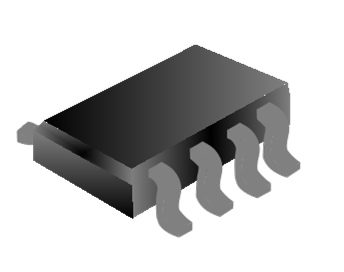

Packages
