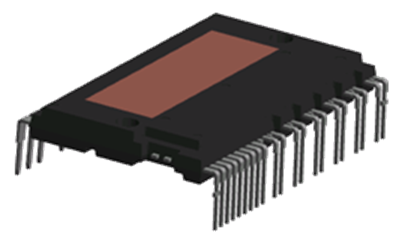

SDM50N60FA
600V/50A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SDM50N60FA is a 3-phase brushless DC motor driver with high integration and high reliability for high power inverter driving such as air conditioner, low power inverter. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

    The under voltage, short circuit and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM50N60FA uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature

  • Built-in low-loss 600V/50A IGBT

  • Built-in high-voltage integrated circuit of gate driver

  • Built-in under voltage protection, over current protection and temperature output

  • Built-in bootstrap diode with current limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminal for inverter current detection

  • Alarm signal: for low-side under voltage, and short circuit protections

  • Very low thermal resistance using Al2O3 DBC substrate

  • Insulation level: 2500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM50N60FA DIP-29A SDM50N60FA Halogen free Tube

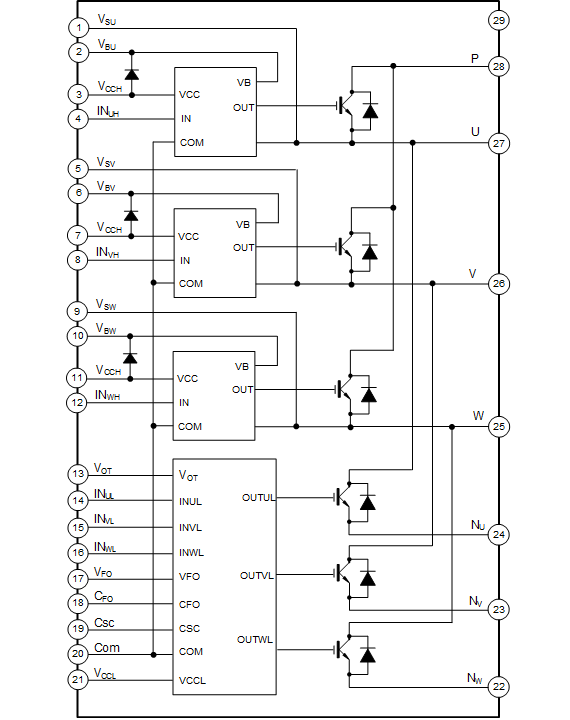

Block Diagram

SDM50N60FA 中英文同.png
