SLP74GTL2014
4-CHANNEl LVTTL TO GTL TRANSCEIVER

    The SLP74GTL2014 is a 4-channel transceiver designed for interface  of LVTTL and GTL-/GTL/GTL+. The transceiver is designed for 3V to 3.6V VCC operation. The LVTTL inputs are tolerant up to 5.5V,  allowing direct access to TTL or CMOS inputs. The device operates as a GTL to LVTTL or LVTTL to GTL translator due to the direction control pin DIR. The reference voltage VREF is adjustable from 0.5V to VCC/2.

   The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuit disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


Main feature

  • The LVTTL inputs tolerant to 5.5V

  • Direct Access to TTL or 5V CMOS

  • Operates as a GTL to LVTTL or LVTTL to GTL translator

  • Adjustable VREF from 0.5V to VCC/2

  • Partial Power-Down Permitted

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 500mA

  • Specified from -40°C to +85°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74GTL2014JYTR TSSOP-14-225-0.65 GL2014 Halogen free Tape & Reel

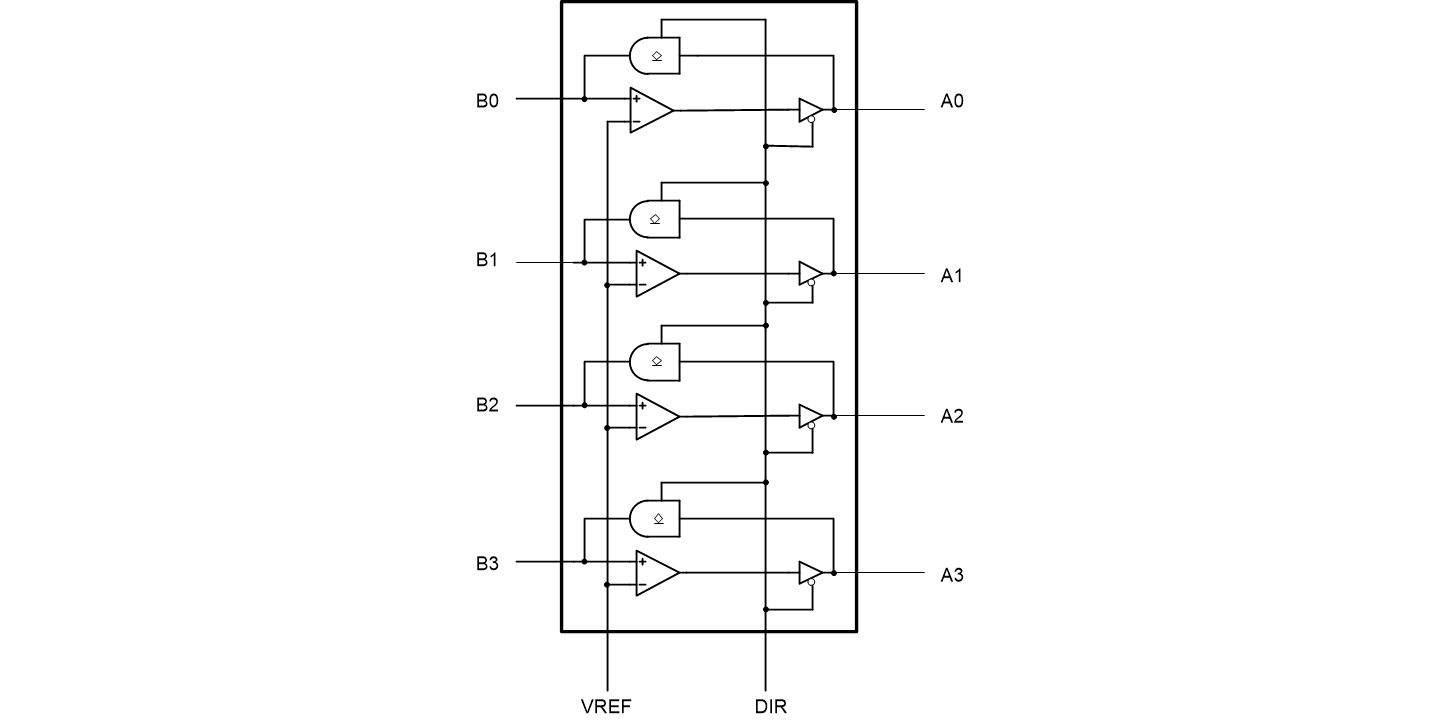

Block Diagram

SLP74GTL2014 （1440-720）.png
